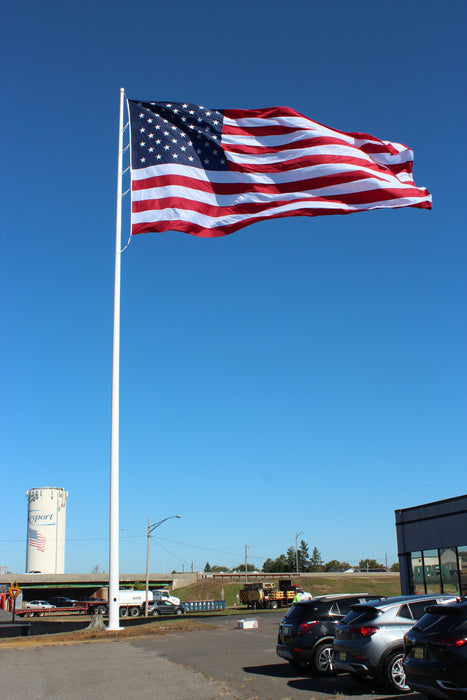

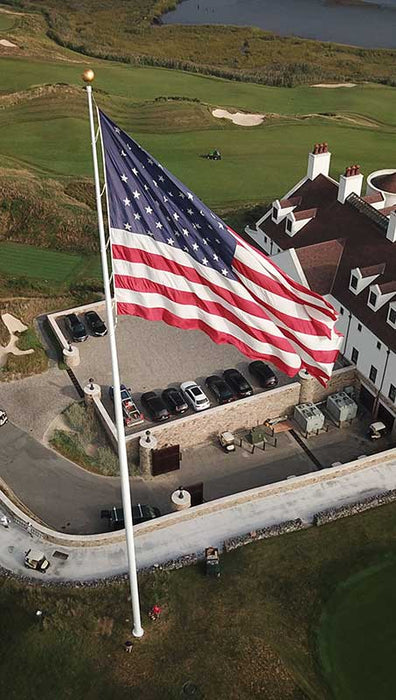

90' to 150' Steel Flagpole
Flagman's large steel flagpoles are available in heights from 90’ to 150’. These poles are true CONE TAPERED flagpoles. Unlike other large steel flagpoles that use reducing pipe sections with offset joints to create the taper, our flagpoles offer a smooth, uniform cone tapered design in heights of 90’ to 150’. Additionally, our large steel flagpoles are equipped with a heavy duty internal halyard system for security and ease of flag raising and lowering. These are ideal if you are looking for a large flagpole and want to make a big statement!
Why choose Flagman's cone tapered large steel flagpoles?
- NO WELDING REQUIRED. These poles are a ONE DAY installation once foundation is placed, saving you thousands in installation costs!
- True flagpole design with uniform smooth cone taper, no visible steps or offsets
- Durable powder coat painted finish is standard.
- Optional hot dip galvanized finish under the powder paint adds decades to the life of the steel. Zinc corrodes at a rate that is 1/30 of the rate of bare steel, so even as the white or silver painted finish fades and wears, exposing the zinc, you won’t end up with any unsightly rust stains running down the flagpole.
- 100 MPH and 130 MPH designs are calculated with a 30’x60’ flag which is the size most commonly flown on poles of these heights. These two designs will meet virtually every local building code in the country.
If you are looking for a large flagpole and want to make a big statement, these Flagpoles are your answer!
Standard Features:
- 100 MPH and 130 MPH Designs available
- Designed for 30’x60’ flag
- Heavy Duty Revolving Internal Halyard System
- NO Field Joint Welding Required
- White Powder Coat Painted Finish
- **Optional Hot Dip Galvanized Finish available**
Standard Parts:
- Heavy duty revolving truck/pulley with sealed bearings
- 5/32" stainless steel cable halyard
- Stainless Steel Swivel & Shock Spring
- Stainless Steel Winch with Crank Handle
- 30' Flag Arrangement
- 5 Retainer Rings
- 1, 14lb Counterweight
- 9 Stainless Steel Snaps
- 2 Piece Steel Flash Collar
- Metal Foundation Sleeve
Option Specs:
90' Length - 100 Mph
Overall Length - 99'
Butt Diameter - 18"
Top Diameter - 4.5"
But Wall Thickness - .188"
Weight - 2312 lbs
2 Section
90' Length - 130 Mph
Overall Length - 99'
Butt Diameter - 19.5"
Top Diameter - 6"
Butt Wall Thickness - .250"
Weight - 3161 lbs
2 Section
100' Length - 100 Mph
Overall Length - 110'
Butt Diameter - 19.2"
Top Diameter - 4.5"
Butt Wall Thickness - .219"
Weight - 2953 lbs
3 Section
100' Length - 100 Mph
Overall Length - 110'
Butt Diameter - 22"
Top Diameter - 7.4"
Butt Wall Thickness - .250"
Weight - 4164 lbs
3 Section
125' Length - 100 Mph
Overall Length - 138'
Butt Diameter - 24.5"
Top Diameter - 6"
Butt Wall Thickness - .219"
Weight - 4798 lbs
3 Section
125' Length - 130 Mph
Overall Length - 138'
Butt Diameter - 24.4"
Top Diameter - 6"
Butt Wall Thickness - .313"
Weight - 6244 lbs
3 Section
150' Length - 100 Mph
Overall Length - 165'
Butt Diameter - 26"
Top Diameter - 4.2"
Butt Wall Thickness - .313"
Weight - 7288 lbs
4 Section
150' Length - 130 Mph
Overall Length - 165'
Butt Diameter - 29"
Top Diameter - 7.4"
Butt Wall Thickness - .313"
Weight - 9885 lbs
4 Section
