100' Internal Winch Aluminum Flagpole
Innovative R & D, Expert Engineering,
and Unsurpassed Manufacturing Capabilities
Create Yet Another Industry-First…
A 100 ft. Tall Aluminum Flagpole,
In a Standard 12″ Butt Diameter
Flies a 20'x30' Flag
The APEX Series from Concord American Flagpole offers 100 ft. flagpoles in a butt diameter of 12″. The raised reinforced door frame design combines the security of an Internal Halyard Winch and Wire Cable system with the reinforced strength necessary for moderate wind speed areas.
Reinforced Raised
Door Frame
Have it professionally installed by the highest rated and most experienced flagpole experts in Connecticut! Visit our Install Page HERE

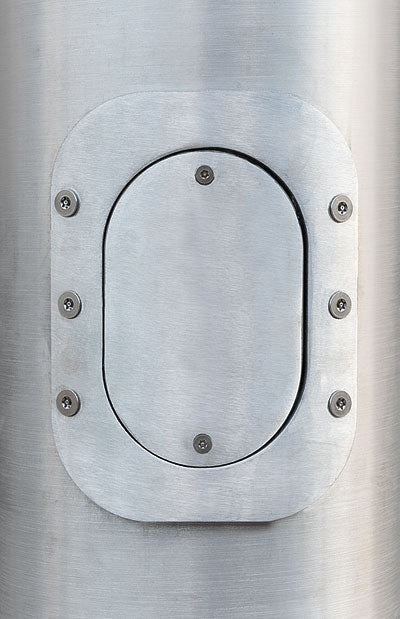

APEX Flagpoles are designed with a raised reinforced door frame consisting of a matched set of inner AND outer castings. The aluminum door is secured with two (2) tamper-proof 1/4-20NC screws.
The advantages of our APEX 100 ft. Flagpole are substantial when compared to the Steel and competitor’s 16″+ Aluminum Butt Diameter options available in the market today.
• Aluminum is Lightweight, Lowering Installation Costs
– Lower Freight Costs
– No Welding Required
• Aluminum is Corrosion Resistant, Providing a Lower Overall Cost of Ownership
– Will Never Rust
– No Painting Required
• Lifetime Pole Shaft Warranty

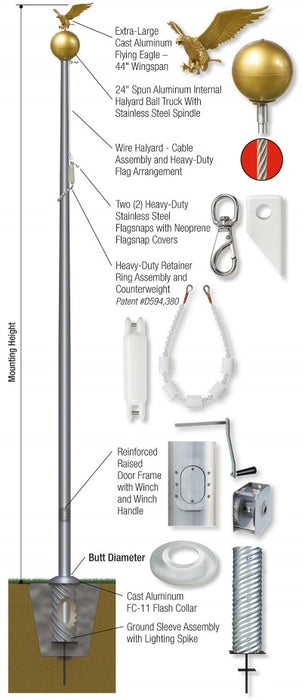

• Extra-Large Cast Aluminum Flying Eagle – 44” Wingspan
• Spun Aluminum Revolving Ball Truck with Dual SEALED Stainless Steel Bearing Assemblies, Stainless Steel Spindle, Cast Brass Exit Bushing and Removable Hood
• Complete Internal Halyard Assembly
– Wire Halyard Cable Assembly
– Heavy-Duty 20’ x 30’ Flag Arrangement
with Shock Spring Assembly
– Two (2) Heavy-Duty Stainless Steel Swivel Flagsnaps
– Two (2) Neoprene Flagsnap Covers
– Patented, Plastic Coated Counterweight
– Heavy-Duty Beaded Retainer Ring Assembly
• Stainless Steel Winch Assembly
with Removable Hand Crank
• Reinforced Raised Door Frame
• Flush Mount Access Door with two (2) Tamper Proof Screws
• Cast Aluminum FC-11 Flash Collar
• Galvanized 16-Gauge Corrugated Steel Ground Sleeve
with Steel Grounding Spike
